This group includes flat backed heatsinks that range from 100mm to 350mm
in width(W) and 50mm to 151.5mm in length(L).
MF10 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF10-50
|
50.0
|
1.28
|
0.22
|
|
MF10-75
|
75.0
|
1.04
|
0.33
|
|
MF10-100
|
100.0
|
0.83
|
0.44
|
|
MF10-151.5
|
151.5
|
0.61
|
0.67
|
MF12 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF12-50
|
50.0
|
1.12
|
0.26
|
|
MF12-75
|
75.0
|
0.92
|
0.39
|
|
MF12-100
|
100.0
|
0.78
|
0.52
|
|
MF12-151.5
|
151.5
|
0.57
|
0.79
|
MF15 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF15-50
|
50.0
|
0.89
|
0.32
|
|
MF15-75
|
75.0
|
0.72
|
0.48
|
|
MF15-100
|
100.0
|
0.61
|
0.64
|
|
MF15-151.5
|
151.5
|
0.50
|
0.97
|
MF20 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF20-50
|
50.0
|
0.72
|
0.47
|
|
MF20-75
|
75.0
|
0.55
|
0.71
|
|
MF20-100
|
100.0
|
0.47
|
0.95
|
|
MF20-151.5
|
151.5
|
0.36
|
1.44
|
MF25 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF25-50
|
50.0
|
0.60
|
0.59
|
|
MF25-75
|
75.0
|
0.45
|
0.88
|
|
MF25-100
|
100.0
|
0.37
|
1.17
|
|
MF25-151.5
|
151.5
|
0.29
|
1.78
|
MF30 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF30-50
|
50.0
|
0.49
|
0.70
|
|
MF30-75
|
75.0
|
0.37
|
1.05
|
|
MF30-100
|
100.0
|
0.32
|
1.40
|
|
MF30-151.5
|
151.5
|
0.25
|
2.12
|
MF35 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
C/Watt for 80 °C rise
|
Weight
in kg.
|
|
MF35-50
|
50.0
|
0.43
|
0.81
|
|
MF35-75
|
75.0
|
0.32
|
1.22
|
|
MF35-100
|
100.0
|
0.28
|
1.62
|
|
MF35-151.5
|
151.5
|
0.21
|
2.46
|
 return to top of page
|

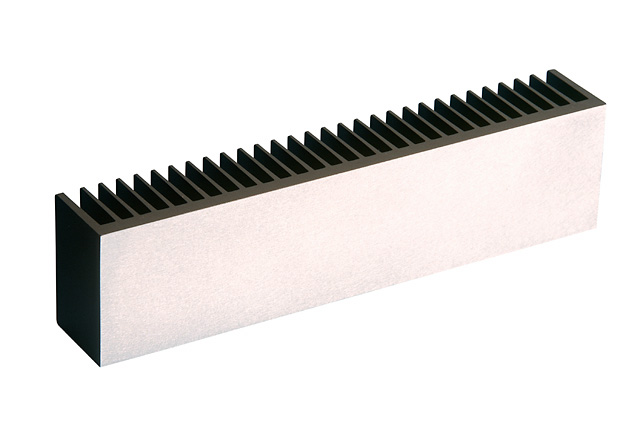

Flat
