This group includes flat backed heatsinks that are 125mm in width(W)
and range from 50mm to 151.5mm in length(L).
MF 18 Series
|
Product Code
|
Standard Lengths
in mm
|
Thermal Resistance
Natural Convection
C/Watt for 80 °C rise
|
Thermal Resistance
Forced Convection
6.4 l/s (13.5 cfm)C/W
|
Thermal Resistance
Forced Convection
12.7 l/s (27 cfm)C/W
|
Weight
in kg.
|
|
MF18-50
|
50.0
|
0.84
|
0.24
|
0.19
|
0.41
|
|
MF18-75
|
75.0
|
0.67
|
0.20
|
0.17
|
0.61
|
|
MF18-100
|
100.0
|
0.59
|
0.18
|
0.15
|
0.82
|
|
MF18-151.5
|
151.5
|
0.46
|
0.13
|
0.11
|
1.24
|
 return
to top of page
|

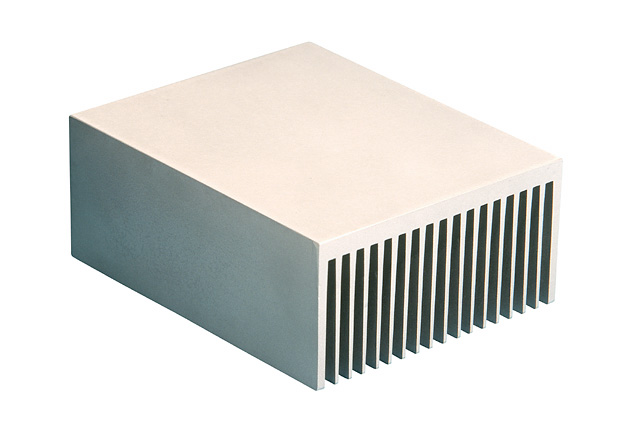

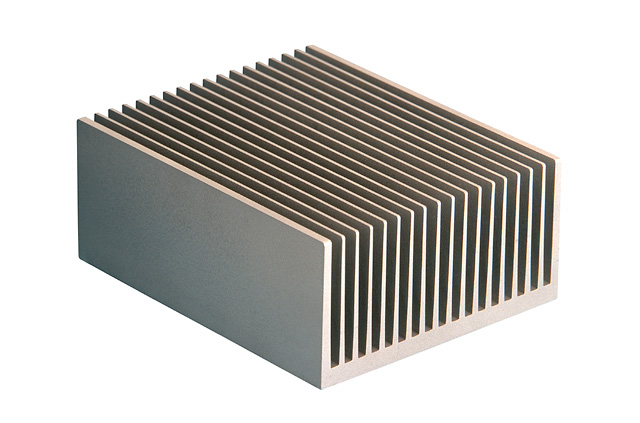

Flat
Backed (FFS) Heatsink showing fin detail.
